Video Mixer Plug-in for Media Production Suite
Video Mixer Plug-in achieves professional visual effects with AI including AI Keying for greenback-less subject extraction, AI Effect Filter for real-time mosaic processing and AI Face Crop for automatic face PinP processing, expanding the range of your creative expressions.
Video Mixer offers the key effects elements of a production switcher with a desktop style interface. SF400 Accepts 4 video inputs (SRT, NDI, SDI) and builds multiple scenes with up to four layers each (choose live video, recorded clips or still images (without Alpha channel supported) and then build in the multi viewer and apply DSK to program out.
Features
- Intelligent Keying creates a key around a person without green screen or special lighting (when camera is fixed in place)
- Faces can be automatically blocked/blurred for legal or security purposes.
- Create virtual sets for multiple presenters in a town hall meeting or webcast.
- Quickly Add PinP slides and lower third graphics to a multiple cameras podcast in real time.
Compatibility & System Requirements
- Specifications: https://pro-av.panasonic.net/en/software/mps/vm/spec.html
- Supported Camera Models: Any camera or other source supporting SDI, SRT or NDI can be used as an input
- Preconfigured Hardware Available: MPS-400, MPS-400D, MPS600 for SRT and NDI only systems, MPS-400S also supports SDI in/Out

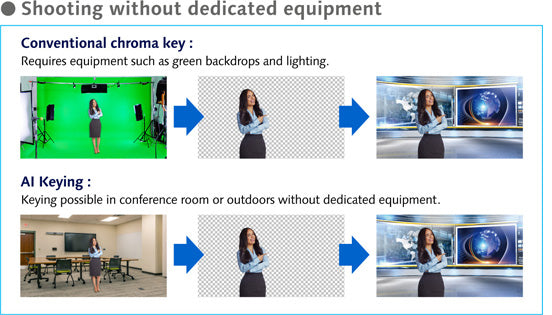

AI Keying
Traditionally, dedicated equipment such as green backgrounds and lighting were required for chroma keying in which a captured person was composited with virtual background. AI Keying uses automatic image recognition to separate people from backgrounds, making it possible to perform chroma key-like compositions in conference rooms, classrooms and outdoors without any need for dedicated equipment. Using just a single PC, stunning video compositions can be created with surprising ease.
AI Effect Filter
Real-time filter processing is achieved through high-precision AI face detection combined with facial recognition. Faces in the frame are automatically detected to apply customized filters for up to 25 individuals.
AI Face Crop
AI Face Crop uses AI-powered face detection to recognize and track specific individuals to automatically insert face PinP (Picture-in-Picture) overlays in real time. A single camera can display multiple face PinP overlays simultaneously eliminating the need for multiple cameras.
