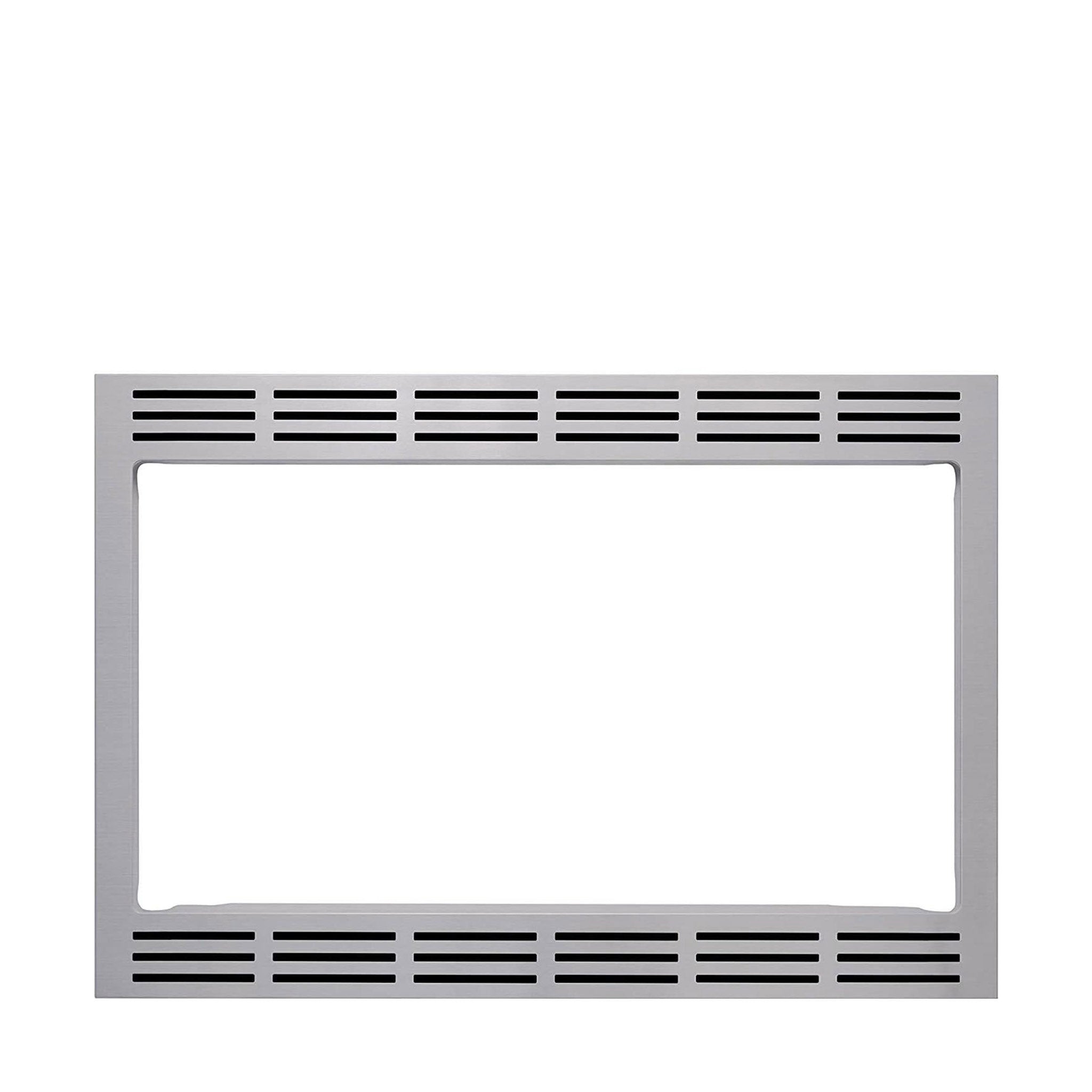

27-inch Vented Trim Kit for 2.2 cu. ft. Microwaves
Convert your Panasonic 2.2 cu. ft. countertop microwave oven to a built-in model with the 27” microwave trim kit. Consists of the trim frame, an upper, lower, and rear duct that attaches to and encases the microwave inside the cabinet cut-out opening to free up precious countertop space. Use only with the NN-SE9**S | NN-SD9**S | NN-SN9**S Panasonic Microwave Ovens.
Features
- Stainless Steel 27” Microwave Trim Kit compatible with 2.2 cu. ft. Panasonic Microwave Oven models including NN-SE9**S, NN-SD9**S, NN-SN9**S
- Trim Kit Outer Size - 684mm or 27” (W) 472mm or 18-9/16” (H) 20mm or ¾” (D)
- Trim Kit Inner Size – 24-5/8" (W) x 13-7/16" (H)
- Required Cabinet Opening - 648mm or 25-1/2" + 8mm or 5/16” – 0mm (W) 442mm or 17-3/8" +/- 2mm or 5/64” (H) minimum 533mm or 21" (D) and minimum 920mm or 36-1/4” from the floor
- Tools Needed for Installation - Measuring tape, pencil, Phillips screwdriver, Ø 2 (5 /64") mm drill
Specifications
- Dimensions: 27" W x 18 9/16" H x 3/4" D (684 x 472 x 20 mm)
- Weight:
