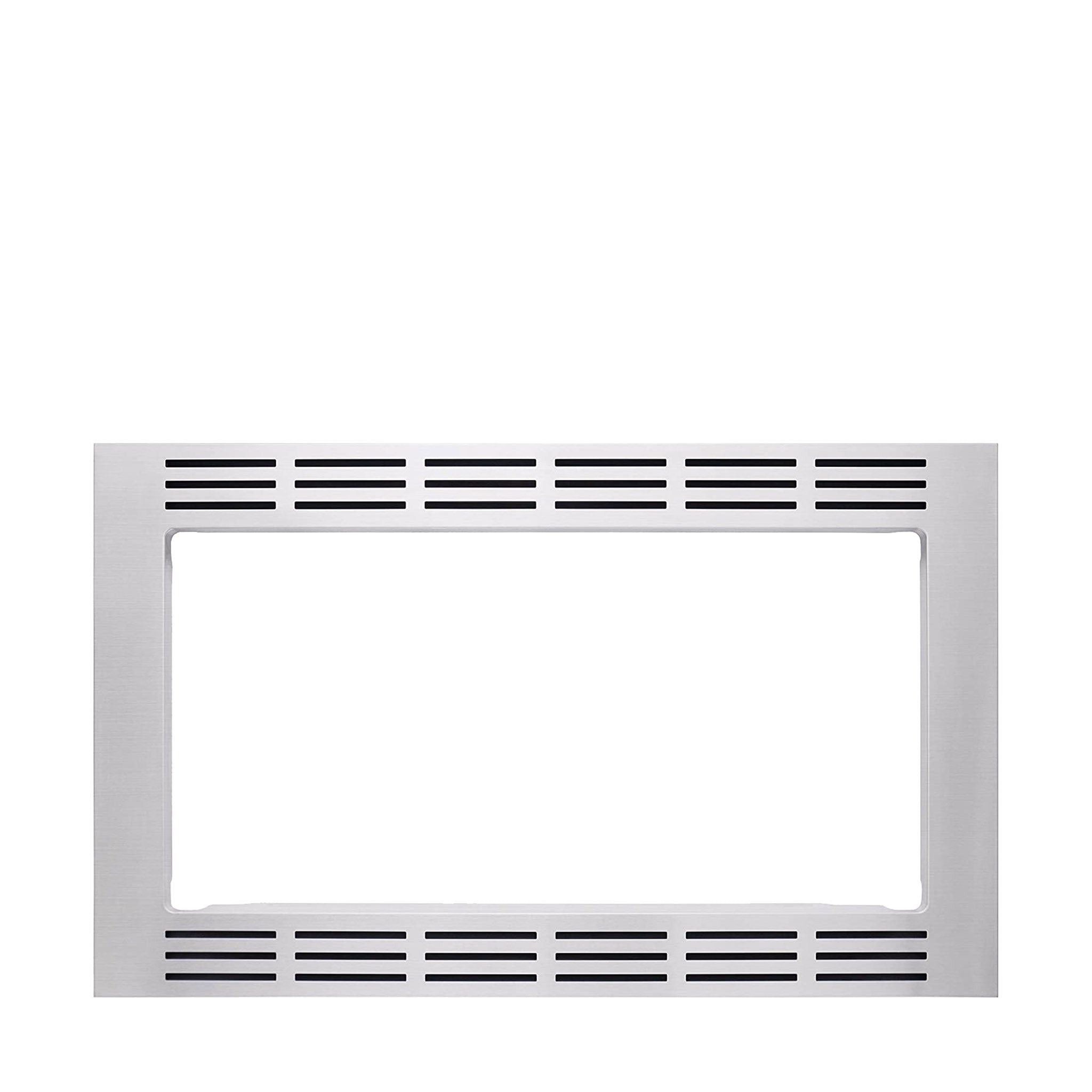

27-inch Vented Trim Kit for 1.6 cu. ft. Microwaves
Convert your Panasonic 1.6 cu. ft. countertop microwave oven to a built-in model with the 27” microwave trim kit. Consists of the trim frame, an upper, lower, and rear duct that attaches to and encases the microwave inside the cabinet cut-out opening to free up precious countertop space. Use only with the NN-SE7**S | NN-SD7**S | NN-SN7**S | NN-ST7**S Panasonic Microwave Ovens.
Features
- Stainless Steel 27” Microwave Trim Kit compatible with 1.6 cu ft Panasonic Microwave Oven models including NN-SE7**S, NN-SD7**S, NN-SN7**S, NN-ST7**S
- Trim Kit Outer Size - 684mm or 27” (W) 419mm or 16-1/2” (H) 20mm or ¾” (D)
- Trim Kit Inner Size - 22 5/8" (W) x 11 3/8" (H)
- Required Cabinet Opening - 648mm or 25-1/2” +8mm or 5/16” – 0mm(W) 389mm or 15-5/16” +/- 2mm or 5/64” (H) minimum 533mm or 21" (D) and minimum 920mm or 36-1/4” from the floor
- Tools Needed for Installation - Measuring tape, pencil, Phillips screwdriver, Ø 2 (5 /64") mm drill
Specifications
- Dimensions: 27" W x 16 1/2" H x 3/4" D (684 x 419 x 20 mm)
- Weight:
27-inch Vented Trim Kit for 1.6 cu. ft. Microwaves
Precio de oferta$299.95
Precio normal (/)
